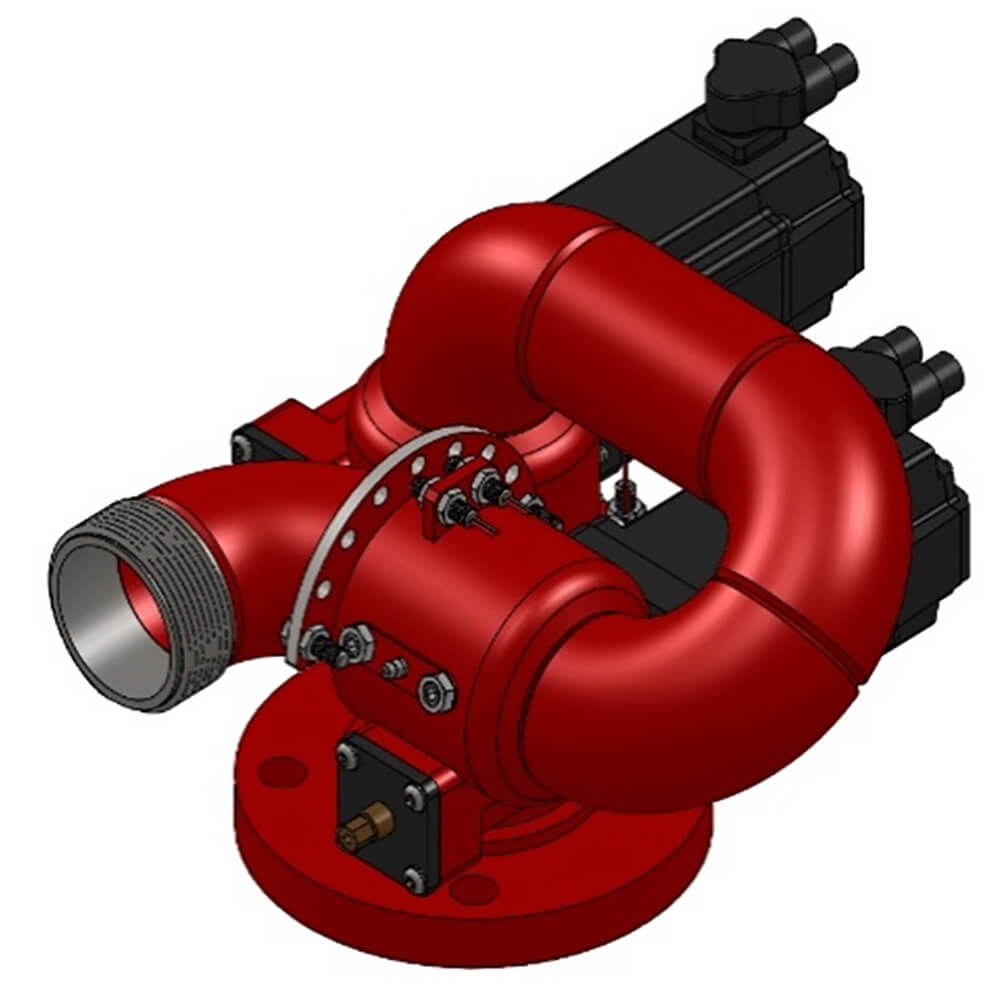

FP1-125-RC Series -1.5" Waterway, Remote Control Fire Monitor, 50-350 GPM

In StockThis product is available for quick shipment nationwide.
Model FP1-125-RCE
Submittal
Submittal FP1-125-RCE Fire Monitor (pdf)
Model FP1-125-RCE

FP1-125-RC Series -1.5" Waterway, Remote Control Fire Monitor, 50-350 GPM

Fire Pro® electric fire monitors are designed to meet all requirements of municipal and petrochemical applications.

The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion. Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Features

  • 1.5” Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 24VDC Power Required
  • 340° horizontal and 135° vertical travel
  • 50-350 GPM (189-1325 lpm)
  • Stainless steel remote control box w/ joystick

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP1-125-RCE Fire Monitor (pdf)
1.5" Station Monitor 50 to 350 GPM [FP1-125-RCE | 1-1/2" Flange Inlet 1-1/2" NPT Female Outlet]329 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

ActuationElectric
Voltage24VDC
Waterway Size1.5"
Flow Rate50-350 GPM
Friction Loss~10 PSI at 125 GPM, ~16-18 PSI at 250 GPM, ~28-30 PSI at 350 GPM
Inlet Size/Connection1.5" Flange
Outlet Connection1.5" NH
Weight24 lbs (11 kg)
Horizontal Rotation340°
Vertical Travel135°
Control InterfaceStainless steel remote control box with joystick
MaterialCarbon Steel
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Electric Fog Nozzle, 12VDC Motors, Closed Circuit Cameras (IP66)
