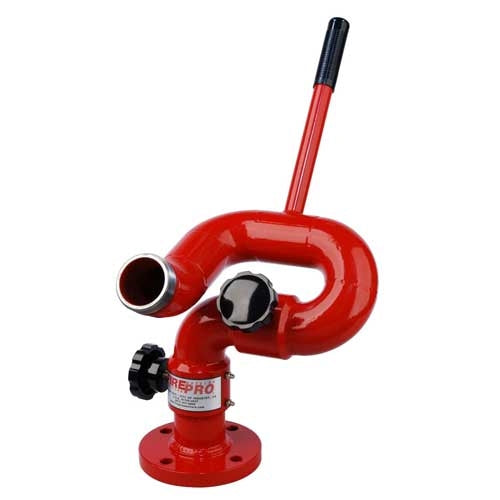

2.5" Waterway, 4" Inlet, 750 GPM, Short Radius Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4SR-750
Submittal
Submittal FP_SR-750 Series Fire Monitor (pdf)
Model FP4SR-750

2.5" Waterway, 4" Inlet, 750 GPM, Short Radius Monitor

Fire Pro® short radius fire monitors were designed for applications where space is minimal. The close radius single waterway configuration is ideal for minimal height and width measurements while maintaining the balanced flow design for ease of operation. Carbon Steel construction with 304 stainless steel swivels.

Standard red polyester powder coating inside and out protects against corrosion.

Features

  • 2.5" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel
  • 300-1000 GPM (1136-3785)

Options

  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Steering Wheel Handle
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_SR-750 Series Fire Monitor (pdf)
2.5" Waterway Station Monitor 2-1/2" No Hub Outlet 300 to 1000 GPM [FP2SR-750 | 2-1/2" Flange Inlet; FP2SRF-750 | 2-1/2" Female NPT Inlet; FP2SRM-750 | 2-1/2" Male NPT Inlet; FP3SR-750 | 3" Flange Inlet; FP3SRF-750 | 3" Female NPT Inlet; FP3SRM-750 | 3" Male NPT Inlet; FP4SR-750 | 4" Flange Inlet]349 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeShort Radius
MaterialCarbon Steel
Waterway Size2.5"
Flow Rate750 GPM
Inlet Size/Connection4"
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
