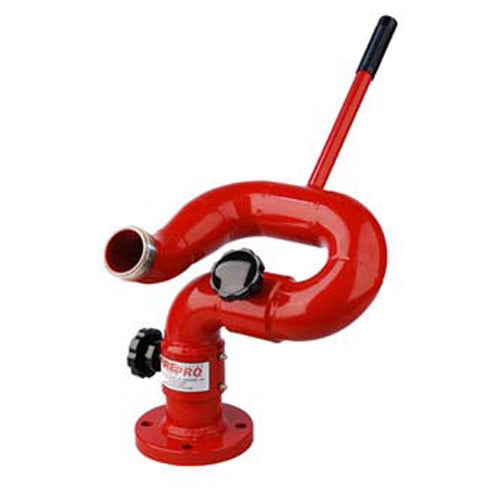

3" Waterway, 4" Inlet, 2.5" Male Outlet, 1250 GPM, Short Radius Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4SR-1200
Submittal
Submittal FP_SR-1200 Series Fire Monitor (pdf)
Model FP4SR-1200

3" Waterway, 4" Inlet, 2.5" Male Outlet, 1250 GPM, Short Radius Monitor

Fire Pro® short radius fire monitors were designed for applications where space is minimal. The close radius single waterway configuration is ideal for minimal height and width measurements while maintaining the balanced flow design for ease of operation.

Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion. Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Features

  • 3.0" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° and 120° vertical travel
  • 300-1250 GPM (1136-4732 lpm)

Options

  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Steering Wheel Handle
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_SR-1200 Series Fire Monitor (pdf)
3" Station Monitor 300 to 1250 GPM 2-1/2" No Hub Outlet [FP3SR-1200 | 3" Flange Inlet; FP3SRF-1200| 3" NPT Female Inlet; FP3SRM-1200 | 3" NPT Male Inlet; FP4SR-1200 | 4" Flange Inlet]322 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeShort Radius
MaterialCarbon Steel
Waterway Size3"
Flow Rate1250 GPM
Inlet Size/Connection4"
Outlet Size2.5"
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
