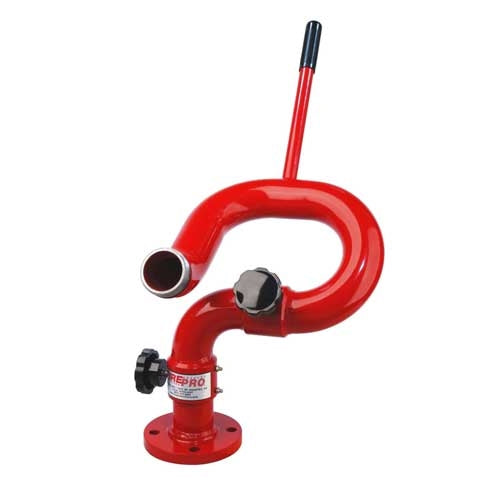

2.5" Waterway, 4" Inlet, 2.5"Outlet, 750 GPM, Stainless Steel Station Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4S-750
Submittal
Submittal FP_S-750 Series Fire Monitor (pdf)
Model FP4S-750

2.5" Waterway, 4" Inlet, 2.5"Outlet, 750 GPM, Stainless Steel Station Monitor

Fire Pro® station fire monitors were specifically designed to meet all requirements of municipal and petrochemical applications. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

100% type 304 Stainless Steel construction. Standard red polyester powder coating inside and out protects against corrosion. Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Features

  • 2.5" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel
  • 250-1250 GPM (946-4732 lpm)

Options

  • High Polish Finish
  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Steering Wheel Handle
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_S-750 Series Fire Monitor (pdf)
2.5" Stainless Steel Station Monitor 2-1/2" No Hub Outlet 300 to 1000 GPM [FP2S-750 | 2-1/2" Flange Inlet; FP2SF-750 | 2-1/2" Female NPT Inlet; FP2SM-750 | 2-1/2" Male NPT Inlet; FP3S-750 | 3" Flange Inlet; FP3SF-750 | 3" NPT Female Inlet; FP3SM-750 | 3" NPT Male Inlet; FP4S-750 | 4" Flange Inlet]312 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeStation
MaterialStainless Steel
Waterway Size2.5"
Flow Rate750 GPM
Inlet Size/Connection4"
Outlet Size2.5"
Horizontal Rotation360°
Vertical Travel120°
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
