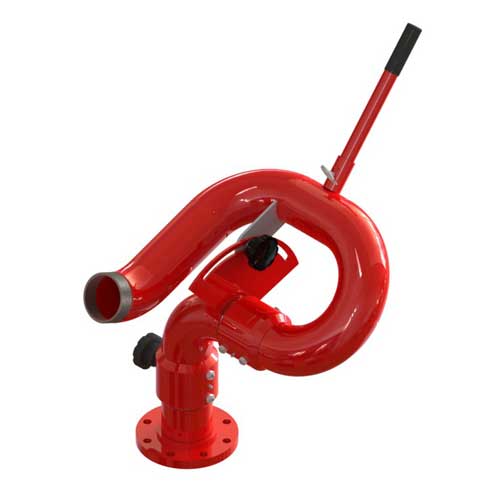

4" Waterway, 2000 GPM, 4" Inlet Stainless Steel Station Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4S-2000
Submittal
Submittal FP4S-2000 Fire Monitor (pdf)
Model FP4S-2000

4" Waterway, 2000 GPM, 4" Inlet Stainless Steel Station Monitor

Fire Pro® station fire monitors were specifically designed to meet all requirements of municipal and petrochemical applications. The 4” waterway is designed for applications that require large volumes of water with minimal manpower or friction loss. 100% type 304 Stainless Steel construction. Standard red polyester powder coating inside and out protects against corrosion.

Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Regularly Furnished

  • 4" Waterway
  • Seamless stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 90° vertical travel

Product Options

  • High Polish Finish
  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Shut Off Valve
  • Steering Wheen Handle

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP4S-2000 Fire Monitor (pdf)
4" Stainless Steel Station Monitor [FP4S-2000 | 4" Flange Inlet 4" Outlet 2000 GPM]601 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeStation
MaterialStainless Steel
Waterway Size4"
Flow Rate2000 GPM
Inlet Size/Connection4" Flange
Outlet Size4"
Horizontal Rotation360°
Vertical Travel90°
Weight135 lbs (62 kg)
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
