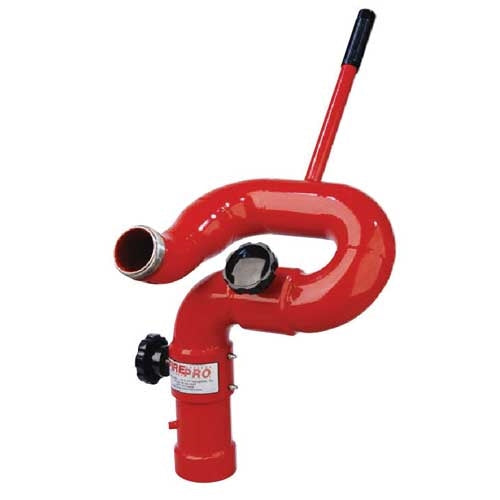

3" Waterway, 3" Inlet, 2.5" Male Outlet, 1200 GPM, Stainless Steel Station Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4S-1200
Submittal
Submittal FP_S-1200 Series Fire Monitor (pdf)
Model FP4S-1200

3" Waterway, 3" Inlet, 2.5" Male Outlet, 1200 GPM, Stainless Steel Station Monitor

Fire Pro® station fire monitors were specifically designed to meet all requirements of municipal and petrochemical applications. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

100% type 304 Stainless Steel construction. Standard red polyester powder coating inside and out protects against corrosion. Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Features

  • 3.0" Waterway
  • Seamless stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel
  • 350-1250 GPM (1325-4732 lmp)

Options

  • High Polish Finish
  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Steering Wheel Handle
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_S-1200 Series Fire Monitor (pdf)
3" Stainless Steel Station Monitor 2-1/2" No Hub Outlet 350 to 1250 GPM [FP3S-1200 | 3" Flange Inlet; FP3SF-1200 | 3" Female NPT Inlet; FP3SM-1200 | 3" Male NPT Inlet; FP4S-1200 | 3" Flange Inlet]326 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeStation
MaterialStainless Steel
Waterway Size3"
Flow Rate1200 GPM
Inlet Size/Connection3" Flange
Outlet Connection2.5" NH
Horizontal Rotation360°
Vertical Travel120°
Weight52 lbs (24 kg)
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
