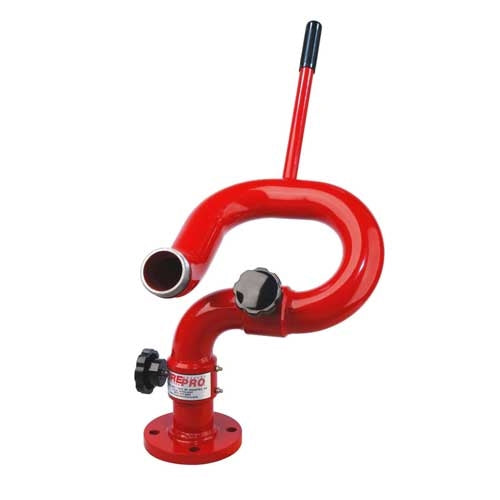

2.5" Waterway, 4" Inlet, 2.5" Outlet, 750 GPM, Station Fire Monitor

In StockThis product is available for quick shipment nationwide.
Model FP4-750
Submittal
Submittal FP_-750 Series Fire Monitor (pdf)
Model FP4-750

2.5" Waterway, 4" Inlet, 2.5" Outlet, 750 GPM, Station Fire Monitor

Fire Pro® station fire monitors were specifically designed to meet all requirements of municipal and petrochemical applications. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance and ensures ease of operation at all pressures and flow ranges.

Features

  • 2.5" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel
  • 300-1000 GPM (1136-3785 lpm)

Options

  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_-750 Series Fire Monitor (pdf)
2.5" Station Monitor 300-1000 GPM 2-1/2" No Hub Outlet [FP2-750 | 2-1/2" Flange Inlet; FP2F-750 | 2-1/2" NPT Female Inlet; FP2M-750 | 2-1/2" NPT Male Inlet; FP3-750 | 3" NPT Flange Inlet; FP3F-750 | 3" NPT Female Inlet; FP3M-750 | 3" NPT Male Inlet; FP4-750 | 4" Flange Inlet]311 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeStation
MaterialCarbon Steel
Waterway Size2.5"
Flow Rate750 GPM
Inlet Size/Connection4"
Outlet Size2.5"
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
CertificationsFM Approved
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
