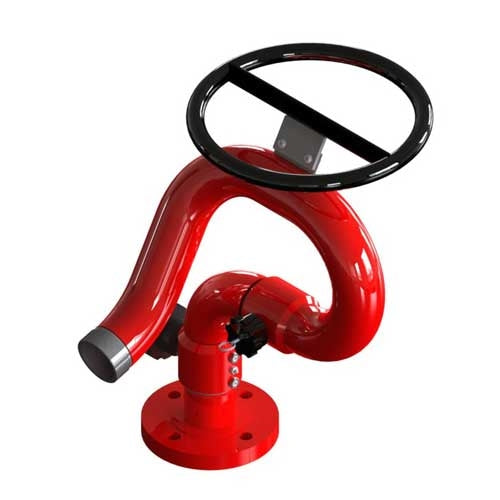

FP3SD-750 Series - 2.5" Waterway, 3" Inlet, 750 GPM, Steering Wheel, Deck Monitor

In StockThis product is available for quick shipment nationwide.
Model FP3FSD-750
Submittal
Submittal FP_SD-750 Series Fire Monitor (pdf)
Model FP3FSD-750

FP3SD-750 Series - 2.5" Waterway, 3" Inlet, 750 GPM, Steering Wheel, Deck Monitor

Fire Pro® deck fire monitors were specifically designed to meet all requirements of municipal and petrochemical applications. Monitors are equipped with a vinyl-dipped steering wheel control handle with a polished stainless steel connector bracket. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

Features

  • 2.5" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel

Options

  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges
  • Parallel Handle
  • Shut Off Valve

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_SD-750 Series Fire Monitor (pdf)
2.5" Station Monitor 300 to 1000 GPM 2-1/2" No Hub Outlet [FP2SD-750 | 2-1/2" Flange Inlet; FP2SDF-750 | 2-1/2" NPT Female Inlet; FP2SDM-750 | 2-1/2" NPT Male Inlet; FP3SD-750 | 3" Flange Inlet; FP3SDF-750 | 3" NPT Female Inlet; FP3SDM-750 | 3" NPT Male Inlet; FP4SD-750 | 4" Flange Inlet]315 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeDeck
MaterialCarbon Steel
Waterway Size2.5"
Flow Rate750 GPM
Inlet Size/Connection3"
Control TypeSteering Wheel
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
