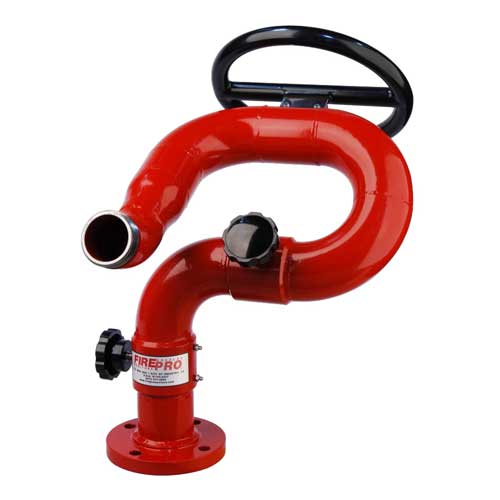

FP3SD-1200 Series - 3" Waterway, 3" Inlet, 2.5" Male Outlet, 1200 GPM, Steering Wheel, Deck Monitor

In StockThis product is available for quick shipment nationwide.
Model FP3SDF-1200
Submittal
Submittal FP_SD-1200 Series Fire Monitor (pdf)
Model FP3SDF-1200

FP3SD-1200 Series - 3" Waterway, 3" Inlet, 2.5" Male Outlet, 1200 GPM, Steering Wheel, Deck Monitor

Fire Pro® fire monitors are designed to meet all requirements of municipal and petrochemical applications. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_SD-1200 Series Fire Monitor (pdf)
3" Deck Monitor 250 to 1250 GPM 2-1/2" No Hub Outlet [FP3SD-1200 | 3" Flange Inlet; FP3SDF-1200 | 3" Female NPT Inlet; FP3SDM-1200 | 3" Male NPT Inlet; FP4SD-1200 | 4" Flange Inlet]327 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeDeck
MaterialCarbon Steel
Waterway Size3"
Flow Rate1200 GPM
Inlet Size/Connection3"
Outlet Size2.5"
Control TypeSteering Wheel
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
