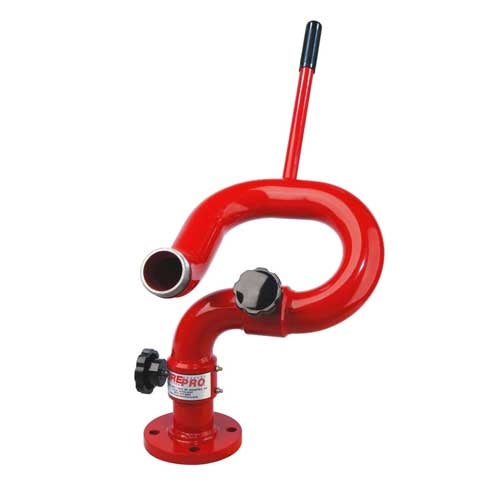

FP3-750 Series - 2.5" Waterway, 3" Inlet, 2.5" Outlet 750 GPM, Station Monitor

In StockThis product is available for quick shipment nationwide.
Model FP3F-750
Submittal
Submittal FP_-750 Series Fire Monitor (pdf)
Model FP3F-750

FP3-750 Series - 2.5" Waterway, 3" Inlet, 2.5" Outlet 750 GPM, Station Monitor

Fire Pro® fire monitors meet all requirements of municipal and petrochemical applications. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion.

Features

  • 2.5" Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low Friction Loss
  • 360° horizontal and 120° vertical travel
  • 300-1000 GPM (1136-3785 lpm)

Options

  • Drainage Provisions
  • Gauge and Guard
  • Metric Flanges

Downloads

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP_-750 Series Fire Monitor (pdf)
2.5" Station Monitor 300-1000 GPM 2-1/2" No Hub Outlet [FP2-750 | 2-1/2" Flange Inlet; FP2F-750 | 2-1/2" NPT Female Inlet; FP2M-750 | 2-1/2" NPT Male Inlet; FP3-750 | 3" NPT Flange Inlet; FP3F-750 | 3" NPT Female Inlet; FP3M-750 | 3" NPT Male Inlet; FP4-750 | 4" Flange Inlet]311 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Monitor TypeStation
MaterialCarbon Steel
Waterway Size2.5"
Flow Rate750 GPM
Friction Loss~10 PSI at 500 GPM, ~15-18 PSI at 750 GPM, ~25-28 PSI at 1000 GPM
Inlet Size/Connection3"
Outlet Size2.5"
Horizontal Rotation360°
Vertical Travel120°
Swivel/Bearing Material304 Stainless Steel
FinishRed polyester powder coat
LubricationZerk fitting
Available OptionsDrainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors
