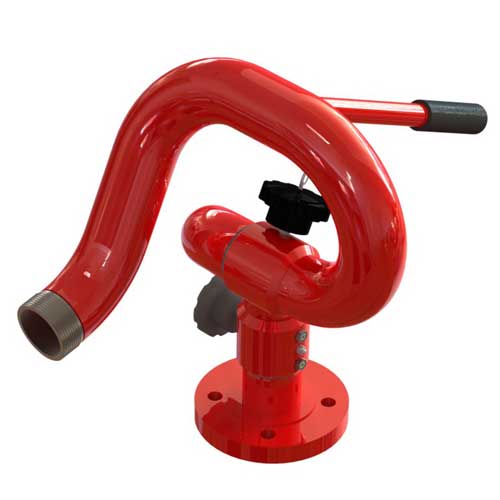

2.5" Waterway, 2.5" Inlet, 750 GPM, Snorkel Monitor
In StockThis product is available for quick shipment nationwide.
Model FP2SN-750
Submittal
Submittal FP_SN-750 Series Fire Monitor (pdf)
Model FP2SN-750
2.5" Waterway, 2.5" Inlet, 750 GPM, Snorkel Monitor
Downloads
Specifications
| Monitor Type | Snorkel |
| Material | Carbon Steel |
| Waterway Size | 2.5" |
| Flow Rate | 750 GPM |
| Inlet Size/Connection | 2.5" 150# RF Flange |
| Outlet Size | 2.5" |
| Horizontal Rotation | 360° |
| Vertical Travel | 120° |
| Weight | 52 lbs (24 kg) |
| Swivel/Bearing Material | 304 Stainless Steel |
| Finish | Red polyester powder coat |
| Lubrication | Zerk fitting |
| Available Options | Drainage Provisions, Gauge and Guard, Metric Flanges, Shut Off Valve, Customer Colors |
