FP23 and FP40 - 1" Inlet Direct Connect Nozzle

In StockThis product is available for quick shipment nationwide.
Model FP23
Submittal
Submittal FP23 thru FP125 Series Monitor Nozzle (pdf)
Model FP23

FP23 and FP40 - 1" Inlet Direct Connect Nozzle

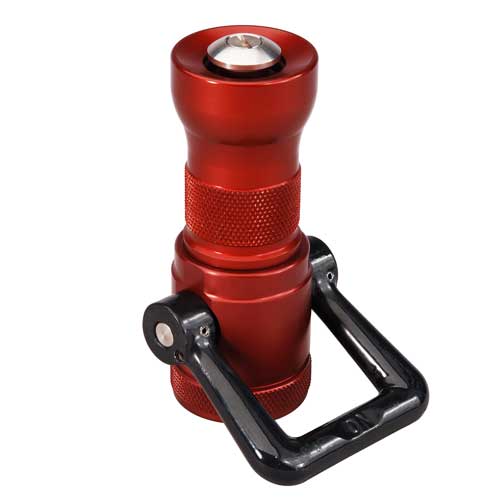

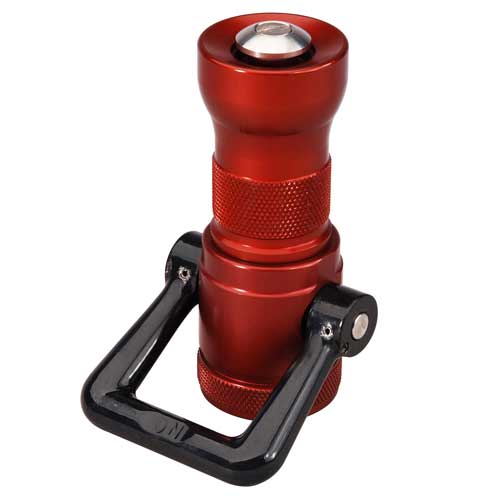

The Fire Pro FP23 and FP40 are direct connect nozzles with a 1 inch NH female inlet. They deliver either a heavy-body uniform fog or a strong straight stream, with ball shutoff, dual handle stops and a full boot style bumper. Construction is hardcoat anodized aluminum with a cast aluminum handle and a fast change Delrin ball and seat.

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP23 thru FP125 Series Monitor Nozzle (pdf)
Direct Connect Fog Nozzles 10 to 125 GPM [FP23 | 1" No Hub Female Inlet 10-23 GPM; FP40 | 1" No Hub Female Inlet 10-40 GPM; FP60 | 1-1/2" No Hub Female Inlet 20-60 GPM; FP95 | 1-1/2" No Hub Female Inlet 20-95 GPM; FP60CG | 1-1/2" No Hub Female Inlet 60 GPM; FP95CG | 1-1/2" No Hub Female Inlet 95 GPM; FP125CG | 1-1/2" No Hub Female Inlet 125 GPM]427 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Nozzle TypeDirect Connect
Inlet Size/Connection1" NH female
PatternCombination fog and straight stream
ShutoffBall with dual handle stops
MaterialAluminum
FinishHardcoat anodized
HandleCast aluminum
Ball and SeatFast change Delrin
BumperFull "boot style"
