FP10848 Series - 2.5" Inlet (500, 750, 1000, 1250 GPM) Selectable Gallonage Nozzle

In StockThis product is available for quick shipment nationwide.
Model FP10848BC
Submittal
Submittal FP10848 and FP10849 Series Monitor Nozzle (pdf)
Model FP10848BC

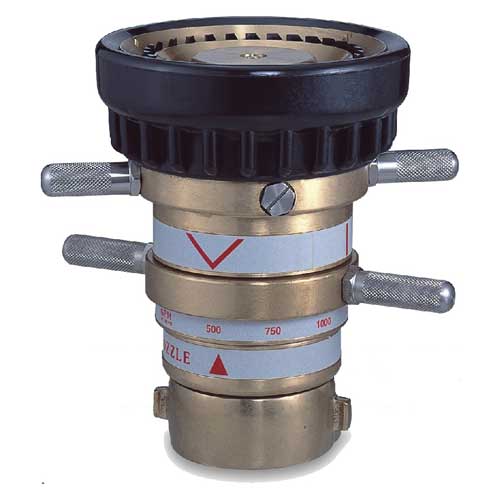

FP10848 Series - 2.5" Inlet (500, 750, 1000, 1250 GPM) Selectable Gallonage Nozzle

Fire Pro® master stream selectable gallonage fire monitor nozzles are combination pattern, master stream nozzles with four distinct, calibrated, and selectable flow settings. Precision machining ensures ease of operation when changing patterns at all pressure ranges.

Regularly Furnished

  • Combination fog and straight stream
  • Lightweight alloy or brass construction
  • Spinning teeth
  • Low maintenance components
  • Heavy-duty protective bumber

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP10848 and FP10849 Series Monitor Nozzle (pdf)
Selectable Gallonage Nozzle [FP10848 | 2-1/2" Inlet 500, 750, 1000, 1250 GPM; FP10848-BC | 2-1/2" Inlet 500, 750, 1000, 1250 GPM; FP10849 | 2-1/2" Inlet 350, 500, 750, 1000 GPM; FP10849-BC | 2-1/2" Inlet 350, 500, 750, 1000 GPM]558 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Nozzle TypeMaster Stream
Inlet Size/Connection2.5"
Flow Rate500 GPM, 750 GPM, 1000 GPM, 1250 GPM
PatternCombination fog and straight stream
Length9-1/3" (236 mm)
Weight22 lbs (10 kg)
MaterialBrass
TeethSpinning
BumperHeavy duty protective
