FP10825 Series - 2.5" Inlet (500, 700, 1000, 1250 GPM) Constant Gallonage Nozzle

In StockThis product is available for quick shipment nationwide.
Model FP10825BC
Submittal
Submittal FP10825 Series Monitor Nozzle (pdf)
Model FP10825BC

FP10825 Series - 2.5" Inlet (500, 700, 1000, 1250 GPM) Constant Gallonage Nozzle

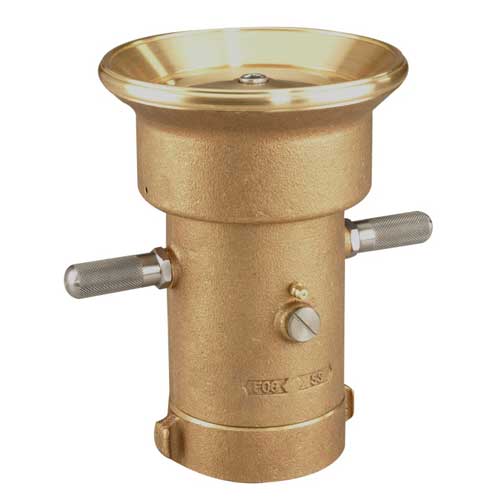

Fire Pro® constant gallonage fire monitor nozzles are combination pattern, master stream nozzles with fixed constant flow. The flow rate is factory preset to customer specifications. Nozzles are adjustable from a straight stream to a dense fog pattern.

Regularly Furnished

  • Combination fog and straight stream
  • Lightweight/ strong alloy  or brass construction
  • Twist shutoff
  • Inbuilt stream shaper for maximum reach

Downloads

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Submittals
PDF icon
Submittal FP10825 Series Monitor Nozzle (pdf)
Constant Gallonage Nozzle [FP10825 | 2-1/2" Inlet 500, 700, 1000, 1500 GPM; FP10825-BC | 2-1/2" Inlet 500, 700, 1000, 1500 GPM]556 KB
PDF icon
Product Literature
PDF icon
Fire Pro Monitor - Nozzle Catalog
14 MB

Specifications

Nozzle TypeMaster Stream
Inlet Size/Connection2.5"
Flow Rate500 GPM, 700 GPM, 1000 GPM, 1250 GPM
PatternCombination fog and straight stream
Length9" (229 mm)
Weight23 lbs (10 kg)
MaterialBrass
ShutoffTwist
Stream ShaperBuilt-in
