FM Approved, Supported, Elevated 2.5-Inch Monitor, Up to 100 Feet, 350 to 1000 GPM
Fire Pro® supported elevated monitors are designed to meet all requirements of municipal and petrochemical applications, as well as meet the stringent requirements for FM. The balanced-flow single-waterway design and precision-machined swivel joints reduce friction losses while improving stream quality and reach. They also ensure ease of operation at all pressure/flow ranges.
Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion. Main waterway is galvanized inside and out. Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.
FEATURES
- 4.5-inch OD Waterway
- 2.5-inch Monitor
- Seamless carbon steel construction
- Zerk fittings for lubrication
- Low friction loss
- 360° horizontal and 90° vertical travel
- 350-1250 GPM (1325-4732 lpm)

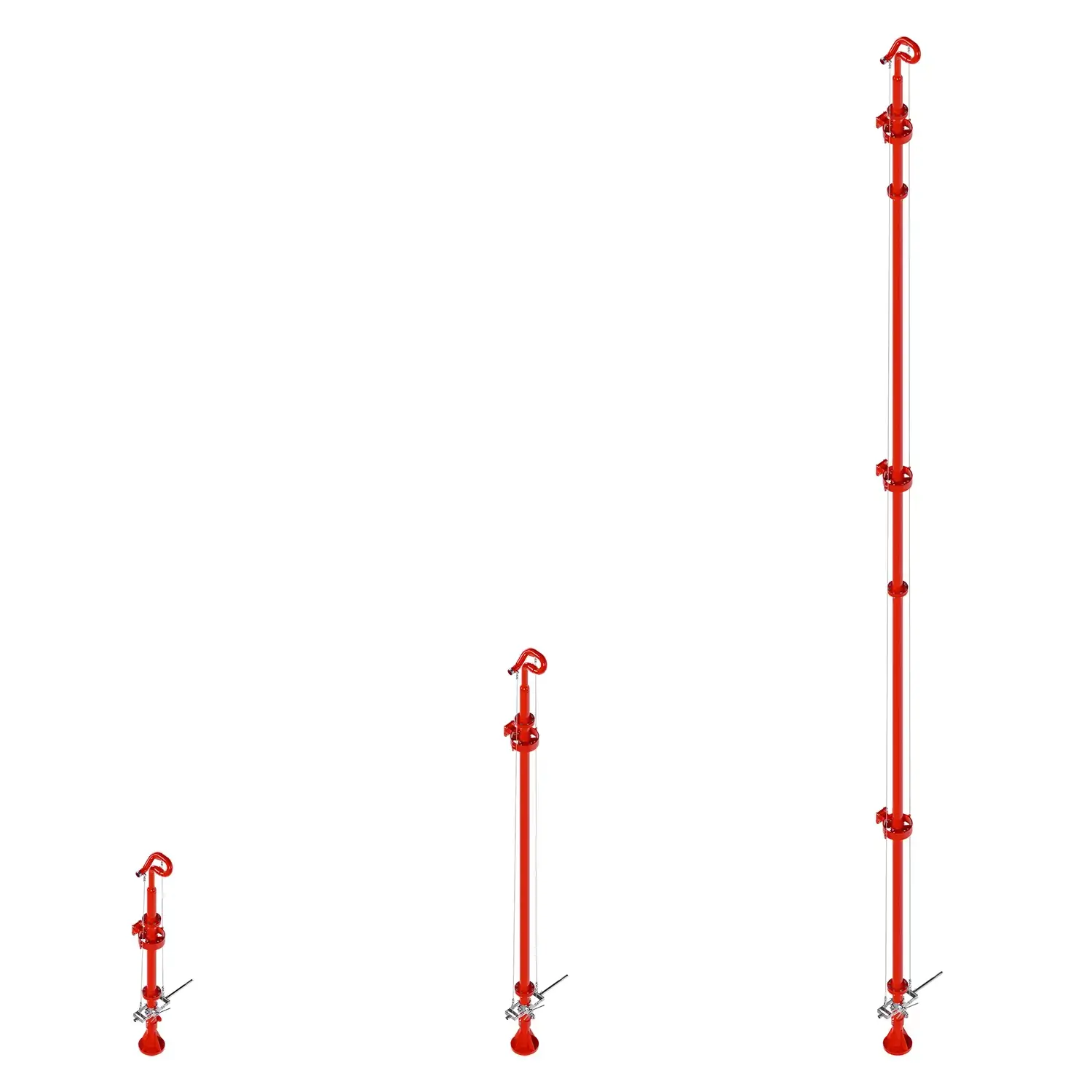

- Available in 1-foot increments up to 100 feet
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | FM Approved, Supported Elevated 2.5-Inch Monitor, Up to 100 Feet, 350 to 1000 GPM [FP900202-10-1 | 10-Feet 1250 GPM Flow Rate; FP900202-20-1 | 20-Feet 1250 GPM Flow Rate; FP900202-50-1 | 50-Feet 1250 GPM Flow Rate; FP900202-100-1 | 100-Feet 1250 GPM Flow Rate] | 315 KB |
Models
MODELS
|
 |
OPTIONS
|
|
COMPATIBLE INTAKE BASEIntake Bases with 18" Base Plate
Intake Bases with 20" Base Plate
Intake Bases with 24" Base Plate
|
Details
