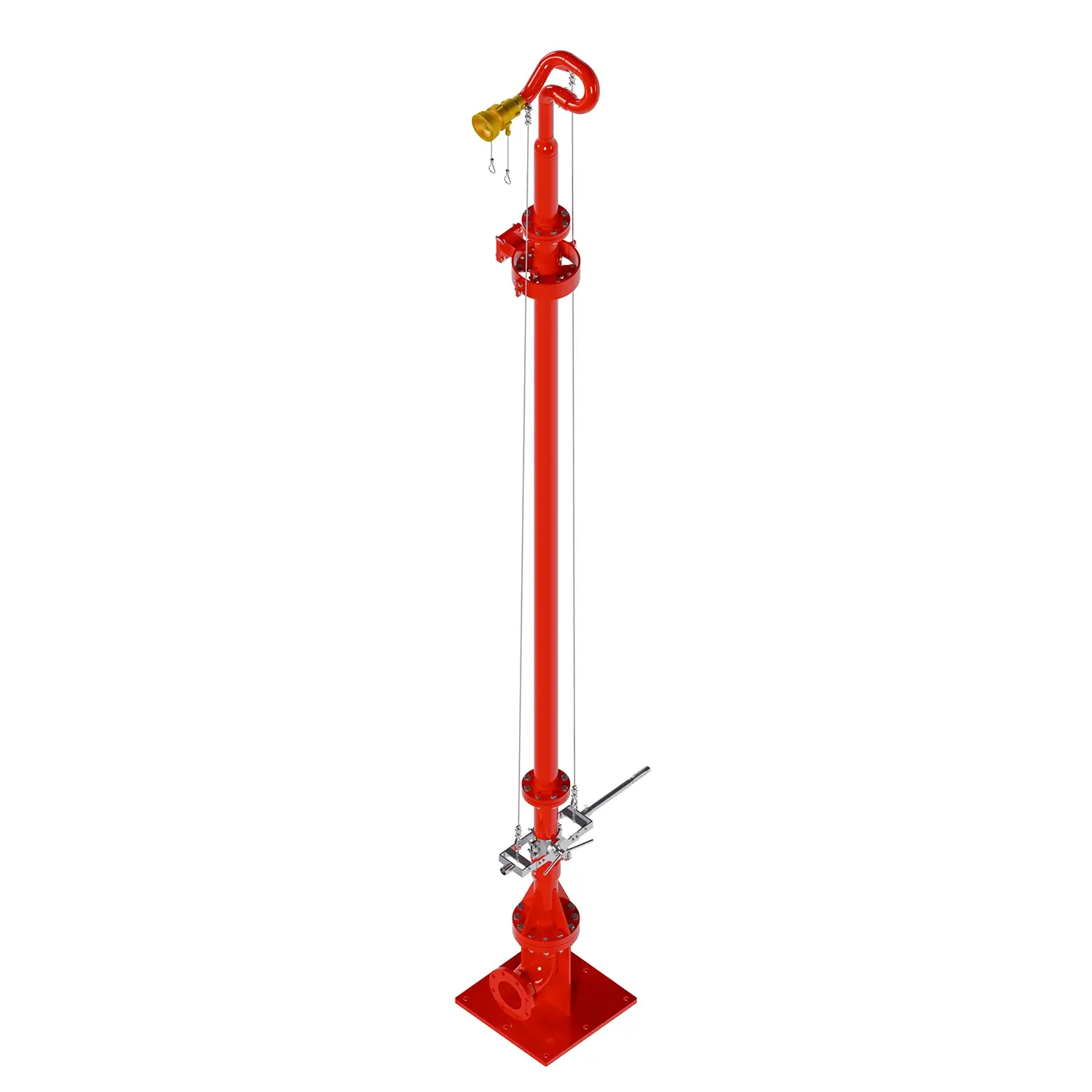

FM Approved, Supported, Elevated 2.5-Inch Monitor, Up to 49 Feet, 500 to 750 GPM
Fire Pro® FM-approved supported elevated monitors are designed to meet all requirements of municipal and petrochemical applications, as well as meet the stringent requirements for FM. The balanced-flow single-waterway design and precision-machined swivel joints reduce friction losses while improving stream quality and reach. They also ensure ease of operation at all pressure/ flow ranges.
Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protects against corrosion. Main waterway is galvanized inside and out. Type 304 stainless steel ball bearings in joints ensure easy movement.
FEATURES
FM Approved
4.5-inch OD Waterway
2.5-inch Monitor
Seamless carbon steel construction
Zerk fittings for lubrication
Low friction loss
360° horizontal and 90° vertical travel
500-750 GPM (1893-2839 lpm)

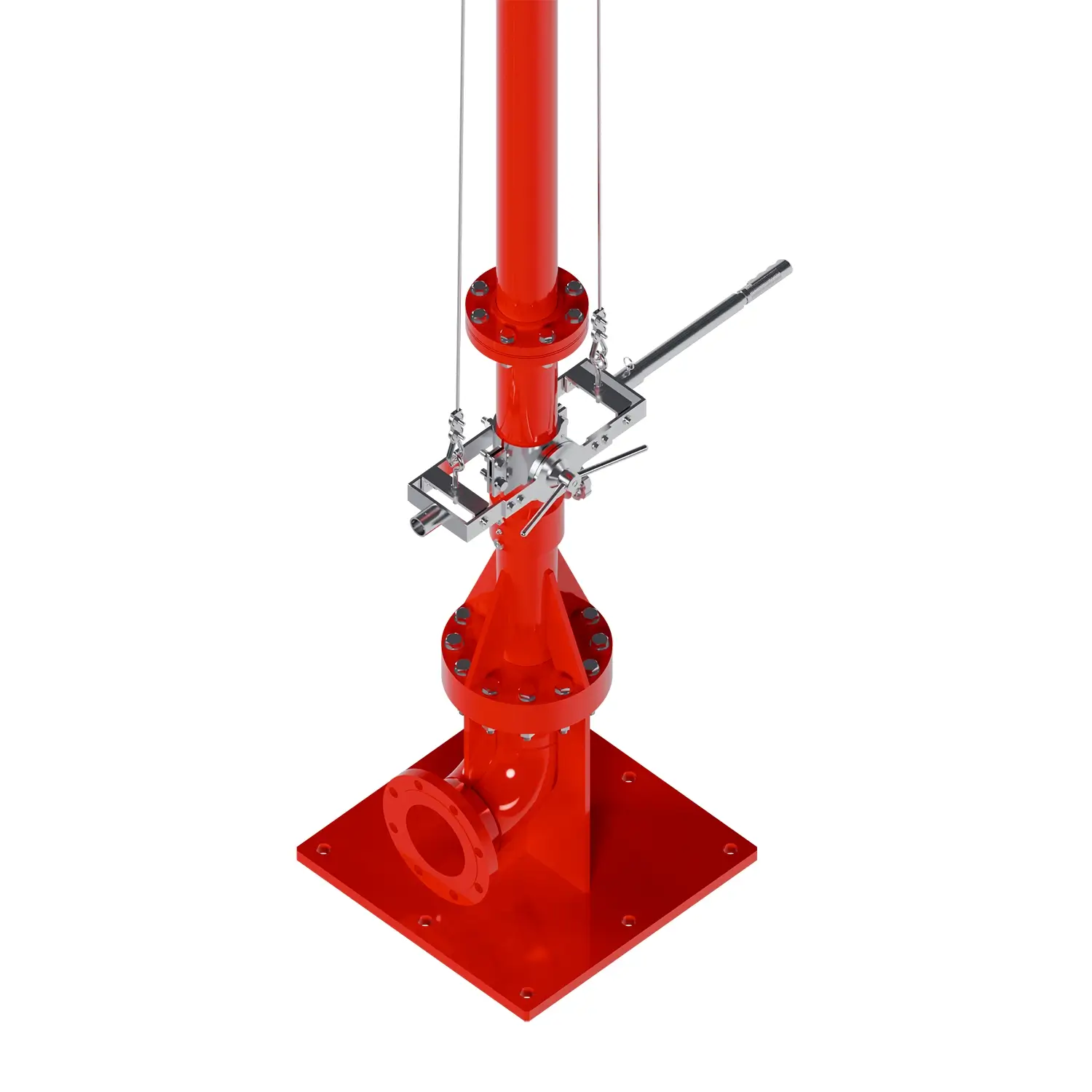

Intake base with 24-inch base plate and 6.0"-150# RF inlet flange

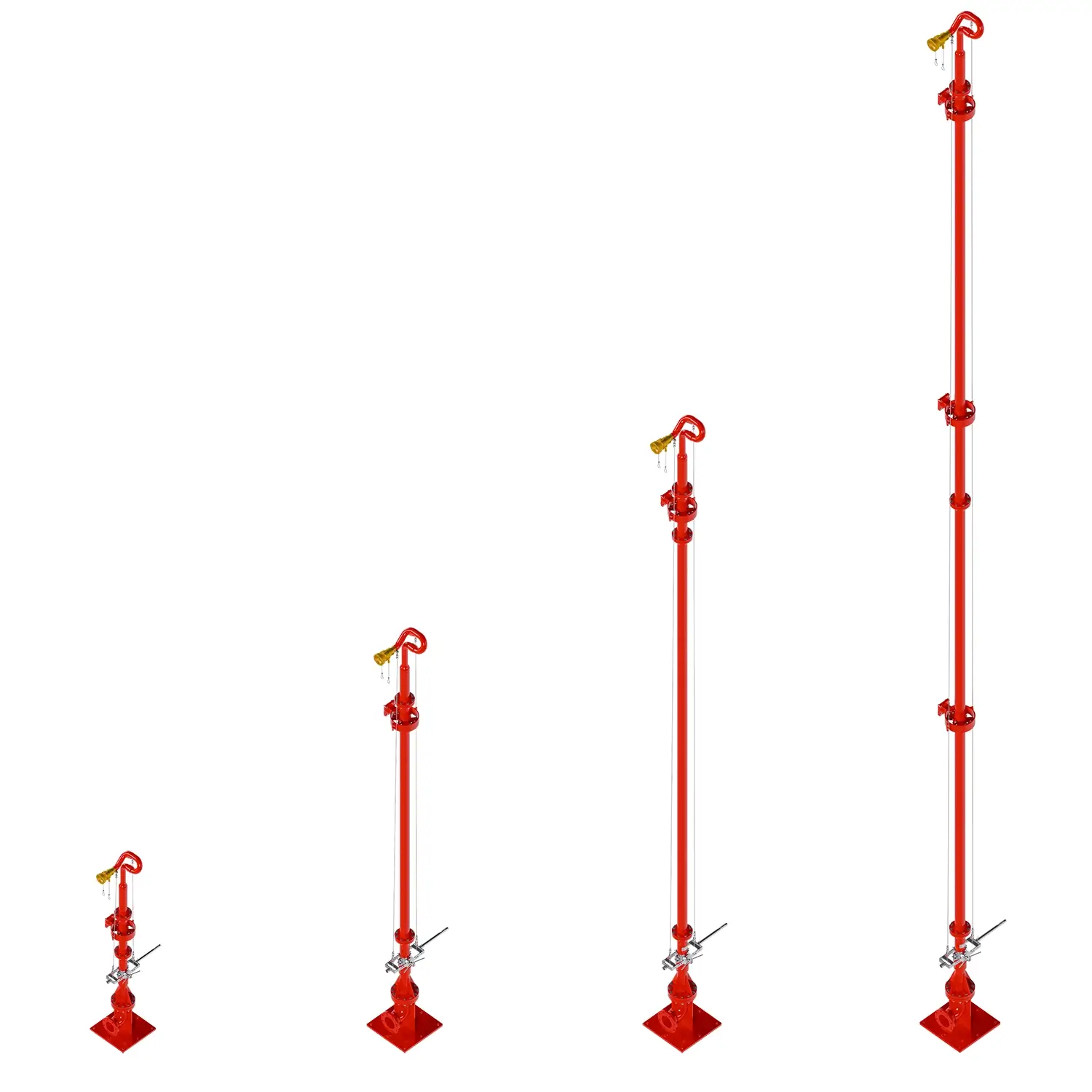

Available in 1-foot increments up to 49 feet
