FM Approved, Supported, Elevated, Oscillating 2.5-Inch Monitor, Up to 100 Feet, 350 to 1250 GPM
Model FP900200 Series

Submittal
Submittal FP900200 Series Monitor (pdf)

Model FP900200 Series
FM Approved, Supported, Elevated, Oscillating 2.5-Inch Monitor, Up to 100 Feet, 350 to 1250 GPM
Downloads
Specifications
| Mounting | Supported |
| Monitor Size | 2.5" |
| Waterway Size | 4.5" |
| Flow Rate | 350-1250 GPM |

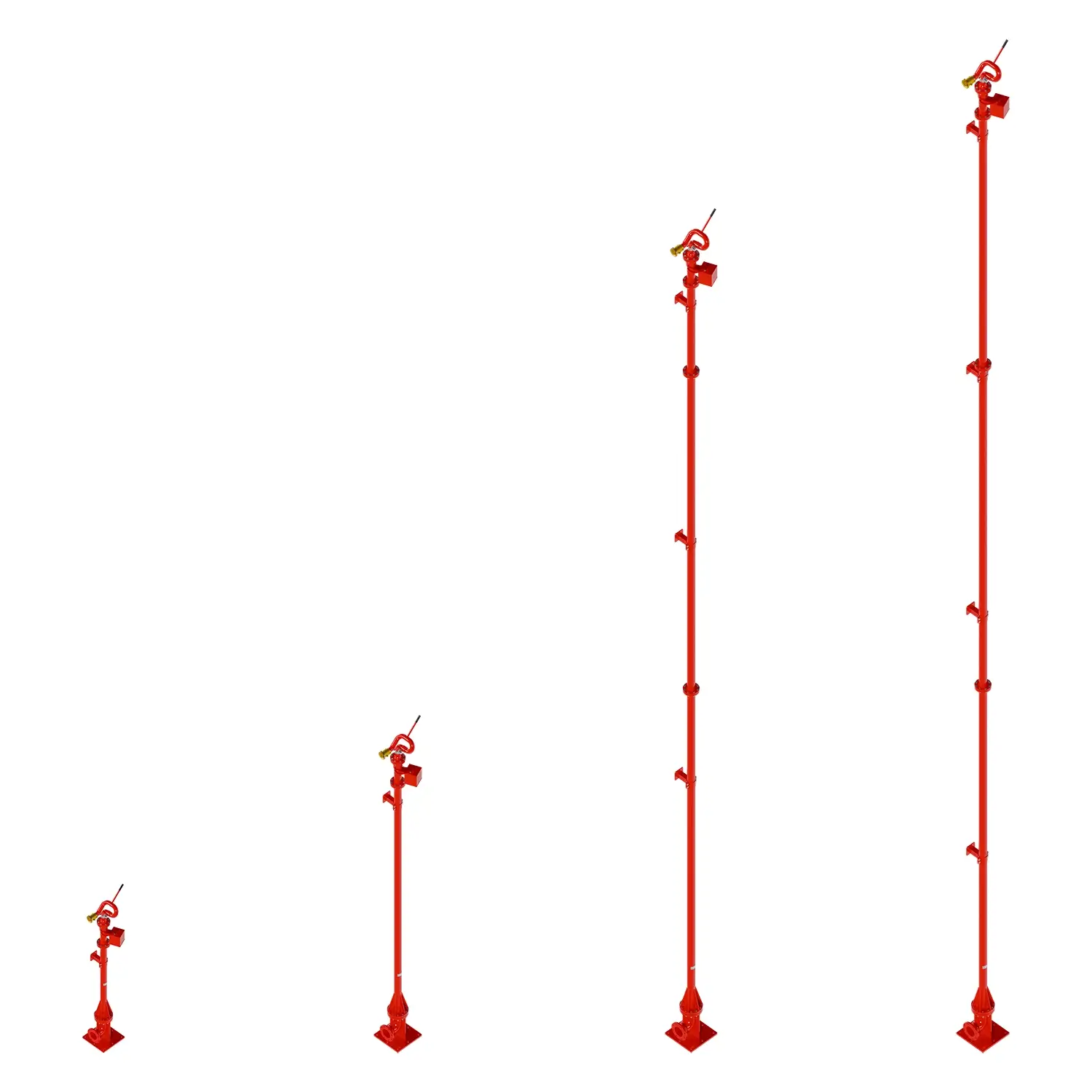

| Elevation Reach | Up to 100 ft |
| Certifications | FM Approved |
| Oscillation | Pelton wheel driven (4" wheel) |
| Included Nozzle | Cable operated fog nozzle (500 or 750 GPM) |
| Horizontal Rotation | 360° |
| Vertical Travel | 90° |
| Material | Carbon Steel |
| Lubrication | Zerk fitting |
